Twisted Pair, Patch Cable (flex) F/UTP cat.5e, PVC, Eca 4x2x26/7 AWG,
grey, 305m - ALANTEC
Technical Specifications
CONSTRUCTION AND ELECTRICAL PARAMETERS
Category 5e
Class D (100MHz)
AWG cross section 4x2x26/7AWG
Conductors copper multistranded 4x2x26/7AWG
Insulation polyethylene
CPR fire classification (Euroclass) Fca

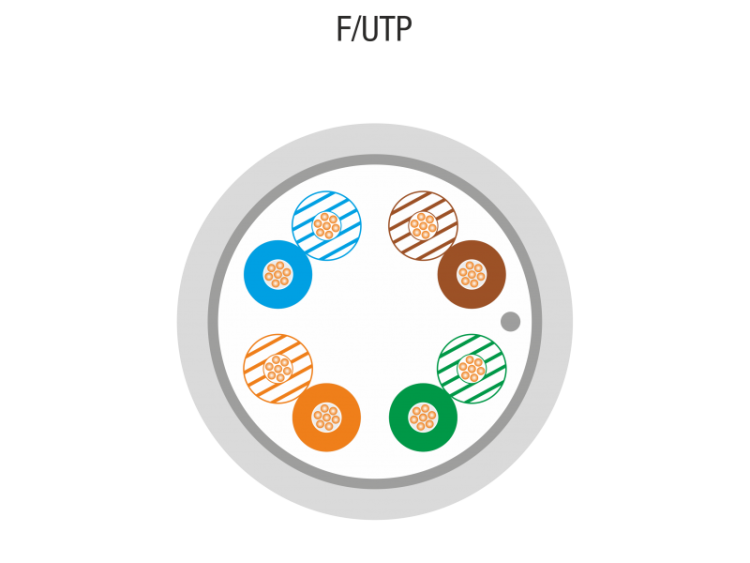

Centre 4 twisted pairs wrapped with polyester film
Screen
Polyester foil covered with a layer of aluminum laid with a layer of metal to the inside,
under the screen a grounding wire of tinned copper wire with a diameter of at least
0.4 mm
Coating polyvinyl with improved oxygen index (FRPVC)
PoE none
Color light gray
ELECTRICAL PROPERTIES at 20ºC
DC resistance loop ≤ 95 Ω /km
Alternating resistance ≤ 2%
Insulation resistance (500V) ≥ 5000 MΩ *km
Capacitive reactive resistance at
800 Hz nom. 48 nF/km
Variable reactive capacitive
resistance ≤ 1500 pF/km
Characteristic apparent resistance
(1-100MHz) (100 ± 15) Ω
Nominal velocity of propagation
(NVP) 69%.
Delayed propagation Nominally ≤ 535 ns/100m
Delay angle Nominally ≤ 20 ns/100m
A-LAN Technologie Sp. z o.o. Sp. k. ul. Dobrego Pasterza 36a, 31-416 Kraków, Poland
+48 12 684 30 00 • www.a-lan.pl • info@a-lan.pl
Strona 2/2
ELECTRICAL PROPERTIES at 20ºC
DC installation tester, 1 min (core) 1000 V
MECHANICAL PROPERTIES
Bending radius 4 x outer ø.
Max. pulling force 80 N
Temperature range during use -30°C to + 50°C
Temperature range during
installation 0°C to + 50°C
Outer diameter 5.0 mm
Weight kg/km 50kg
Packing carton (305m)
Характеристики
| Производител | ALAN |
| Тип | Кабел |
| Кабел тип конектор 1 | RJ-45 |
| Кабел тип конектор 2 | RJ-45 |
| дължина на кабела | 305 m |
| Категория | 5e |
| Тип мрежови кабел | FTP |
| Цвят: | Сив |
