| Model |
Voltage
VDC |
Current
AMP |
Input
WATTS |
Fan Speed
RPM |
AirFlow
CFM |
Pressure
lnch-H2O |
Noise
dBA |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

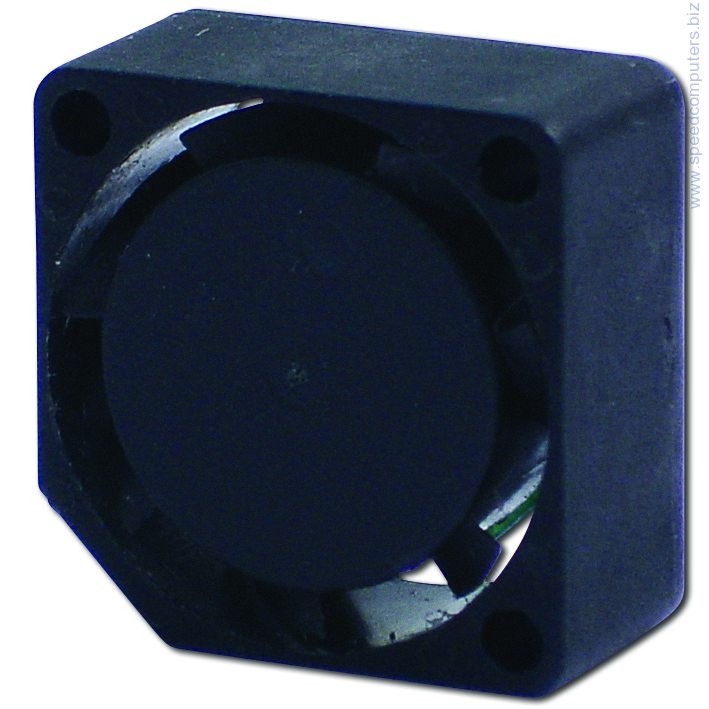

| EC2008M05C |
5 |
0.16 |
0.8 |
11000 |
0.95 |
0.06 |
<21.3 |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
C - One ball One sleeve bearing •
Material:impeller&Frame:Plastic(UL 94V-0)
• Lead Wires:
UL 1007 AWG #28 Or Equivalent
Red Wire Positive(+),Black Wire Negative(-),Yellow Wire Or Blue Wire Signal(FG)
• Function type is optional.
• The max air flow and the speed are measured in free air;max air pressure is measured at zero air flow.
• Noise is measured in anechoic chamber in free air,one meter from intake side.
• All readings are typical values at rated voltage.
• Specifications are subject to change without notice.
• Additional special function may be added according the requirement of customer.
※ If any fan requests,please do no hesitate to contact us. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| | |
